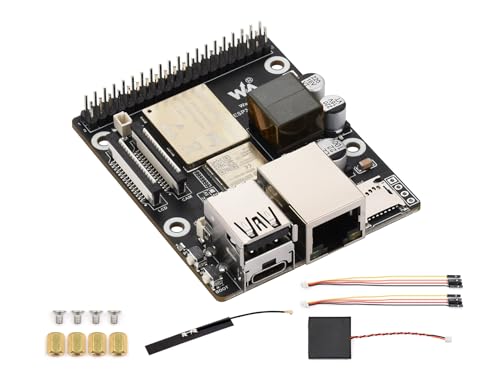

ESP32 P4 WIFI6 PoE ETH Entwicklungsboard Basierend auf und C6, Integriertes Modul, Unterstützt Wi Fi 6 BLE 5, mit MIPI CSI/DSI, USB OTG 2.0, Ethernet Anschluss, usw.

ESP32-P4-WIFI6-POE-ETH multimedia development board adopts ESP32-P4 and ESP32-C6, with RISC-V 32-bit dual-core and single-core processors, supports Wi-Fi 6 and BLE 5 wireless connections and other functions through SDIO 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM, 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash Integrated PoE Module for PoE power supply, with rich human-machine interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt. header, etc. Adapting 2*20 GPIO headers with 28 x remaining programmable GPIOs Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
