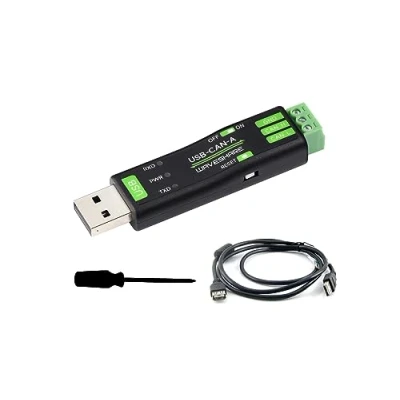

USB zu CAN Adapter Analysator Bus Konverter Basierend auf STM32 Chip, Unterstützt Windows 11/10/8/7/XP und Raspberry Pi OS/Jetson Nano Ubuntu etc. Linux Systeme, mit Kabel

USB to CAN Bus adapter analyzer collects data from CAN bus to PC via USB for transceiver control, data analysis, acquisition and monitoring of CAN bus network, supports CAN2.0A (standard frame) and CAN2.0B (extended frame), CAN baud rate is configurable in the range of 5Kbps-1Mbps USB to CAN converter model support Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu under Jetson Nano, easy secondary development, just need to modify the sending and receiving commands, adopts the original STM32F103 chip, stable and reliable communication Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending, Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data. Data can be saved as TXT or Excel Supports CAN bus detection for status checking, Sending/receiving CAN data with time scale, allows sequentially displaying, Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
