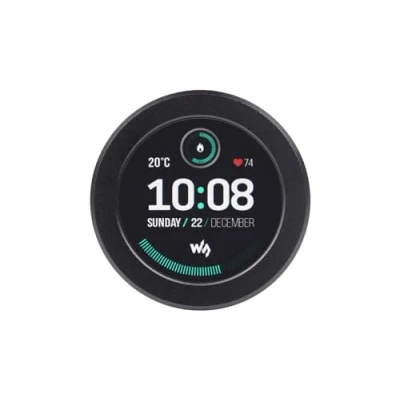

Waveshare ESP32 S3 Development Board with 1.28inch Round Touch LCD Display CNC Metal Case,32 bit LX7 Dual core Processor,Support 2.4 GHz Wi Fi and Bluetooth 5(LE)

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.Type-C connector, keeps it up to date, easier to use Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color. Adopts CNC metal case with Acrylic dull-polish bottom plate.Adapting 6 × GPIO pins via SH1.0 connector Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V MX1.25 lithium battery recharge/discharge header Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
