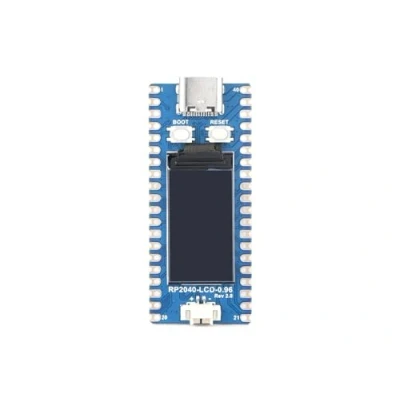

Waveshare Pico Like MCU Board Based On Raspberry Pi RP2040 with 0.96inch IPS Display LCD Support Most Add Modules

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom; Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz; 264KB of SRAM, and 2MB of on-board Flash memory USB-C connector, keeps it up to date, easier to use; 0.96inch 160×80 pixels 65K colorful IPS LCD display; Lithium batt recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch; Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components); USB 1.1 with device and host support Low-power sleep and dormant modes; Drag-and-drop programming using mass storage over USB; 26 × multi-function GPIO pins; 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip; Temperature sensor; Accelerated floating-point libraries on-chip; 8 × Programmable I/O (PIO) state machines for custom peripheral support
