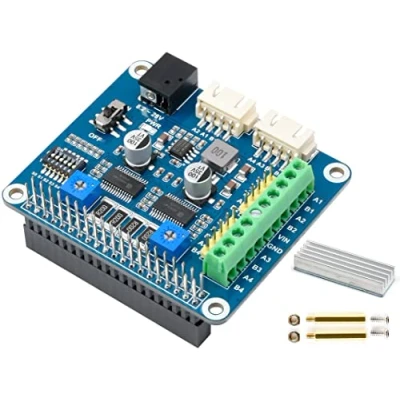

Stepper Motor HAT (B) für Raspberry Pi/Jetson Nano, Onboard 2 CH HR8825 Motortreiberchip, Antrieb von Zwei Schrittmotoren, bis zu 1/32 Mikroschritt, 3D Drucker, Mechanischer Arm usw.

HRB8825 Stepper Motor HAT with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Onboard dual HR8825 motor controller IC with built-in microstepping indexer, can drive two stepper motors, easy to use 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step Onboard different stepper motor interfaces, easy access to stepper motors in different specifications Adjustable motor drive current via potentiometer, maximum 2.5A current output, integrates 5V regulator, allows providing power to Raspberry Pi. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
